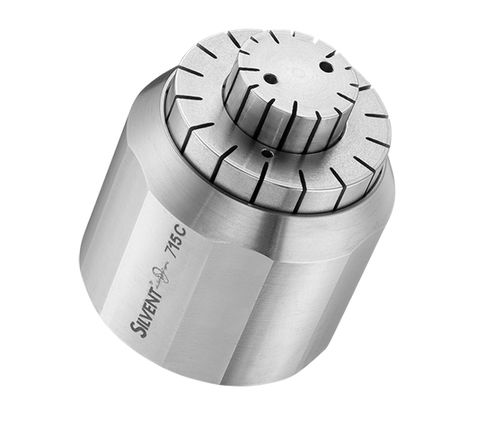

Cleaning nozzle 715 C
compressed airmultidropstainless steel

cleaning nozzle
cleaning nozzle
cleaning nozzle
cleaning nozzle
cleaning nozzle
Add to favorites
Compare this product


Characteristics

Function
cleaning
Fluid
compressed air
Stream
multidrop
Material
stainless steel
Other characteristics
with aerodynamic slots
Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Media temperature

Min.: 0 °C
(32 °F)

Max.: 400 °C
(752 °F)

Description

SILVENT 715 C: with aerodynamic slots to allow optimal utilization of compressed air while keeping the noise level to a minimum. Blowing force approx. 15 times stronger than SILVENT 701 (45.0 N (9.9 lbs)). For applications requiring more concentrated force on the center of the object to be cleaned, dried, cooled, transported etc. The extra slot nozzle in the middle increases air velocity and thereby blowing force, while retaining the air cone pattern of a SILVENT 710. Specially made entirely of stainless steel. Part of SILVENT's 700 C series, together with 707 C and 730 C. Fully meets OSHA safety regulations and EU Machine Directive noise restrictions. Technical data Replace open pipe Ø (mm) - 17 Blowing force (N) - 45.0 Air consumption (Nm³/h) - 311 Sound level (dB(A)) - 100 Nozzle technology - Slot Material (nozzle) - 1.4305 (303) Connection - G 3/4" Connection type - Female Weight (kg) - 0.2200

Catalogs

No catalogs are available for this product.

See all of SILVENT‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

BIEMH 2024
BIEMH 2024

3-07 Jun 2024 Bilbao (Spain) Hall 6 - Stand A-10

  • More information
