Drying operation air wipe 464

for cleaningfor pipesfor cables

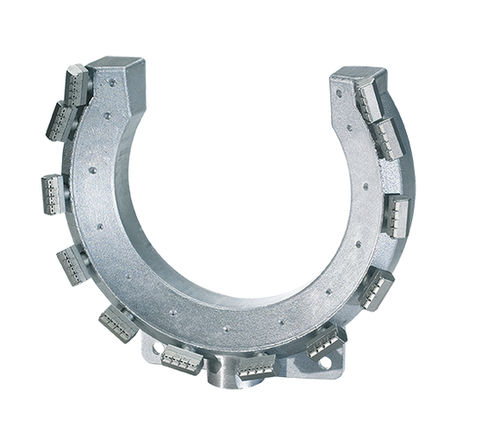

SILVENT 464: a doughnut nozzle with just an outer ring of flat nozzles that offers the very lowest noise level and air consumption. Perfectly adequate for the removal of lightweight matter and lesser amounts of liquid. Provides plenty of blowing force for applications such as drying or cleaning of cable, pipe, hose or sections passing through the doughnut at moderate speeds. Efficient and uniform 360° coverage is guaranteed - even at the opening in the doughnut, where extra powerful nozzles are mounted at the optimal blowing angle. SILVENT 464 allows problem-free insertion and removal of material with diameters of 25 to 105 mm (1.0” – 4.1”) through the opening in the doughnut. There are attachment lugs for easy and safe mounting. Technical data Replace open pipe Ø (mm) - 16 Blowing force (N) - 32.0 Air consumption (Nm³/h) - 234 Sound level (dB(A)) - 92 Nozzle technology - Slot Material (nozzle) - Zn Connection - G 3/4" Connection type - Female Weight (kg) - 1.1000 Max temp (°C) - 70 Replace open pipe Ø (mm) - 16 - Noise reduction - 30 [dB(A - 88% Energy savings - 240 [Nm³/h] - 51% Material specification: Zn ZP0410 EN 1284, NBR 70
