Drying nozzle 404 Lcleaningcoolingblow-off
Add to favorites
Compare this product
Characteristics
- Function
- cleaning, cooling, blow-off, for drying
- Fluid
- air
- Stream
- full-cone
- Material
- zinc
- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145 psi)- Media temperature
Min.: 0 °C
(32 °F)Max.: 70 °C
(158 °F)
Description

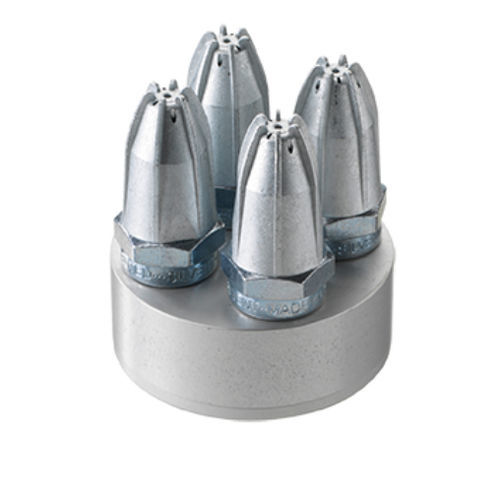

SILVENT 404 L: for a broader air cone and high blowing force. Perfect for ejection of parts from punch presses and molds. Drying, cleaning, transport and cooling are other areas of application for this product. Meets OSHA safety standards and the noise limitations of the EU Machine Directive.
Technical data
Replace open pipe Ø (inch) - 5/16
Blowing force - 3.0 lbs
Air consumption (scfm) - 40.0
Sound level (dB(A)) - 84
Nozzle technology - Laval
Material (nozzle) - Zn
Connection - NPT 3/8"
Connection type - Female
Weight (lbs) - 0.644
