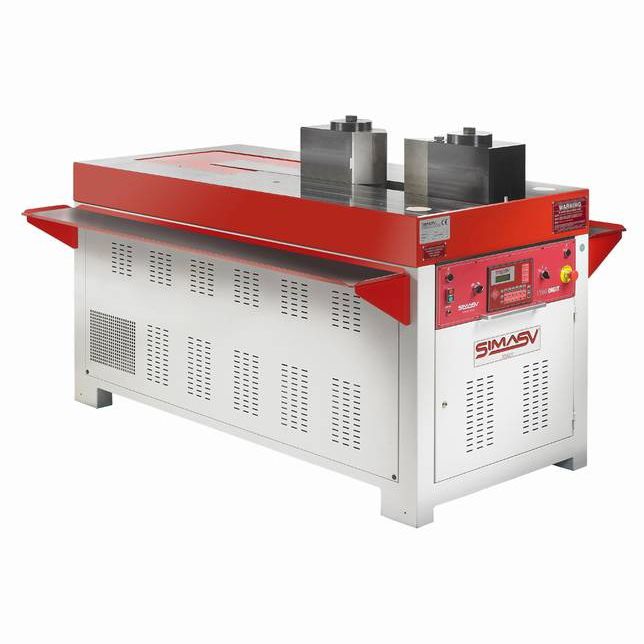

Horizontal press brake
max. 98 t | T100 DIGIT 1 AXIS
S.I.M.A.S.V. SRL
Main features of the T100 DIGIT 1 AXIS bending press
- solid electro-welded work table, suitably shaped
- cylinder placed under the work table
- forged steel carriage with double slides, suitably hardened, grounded and protected by dust scrapers

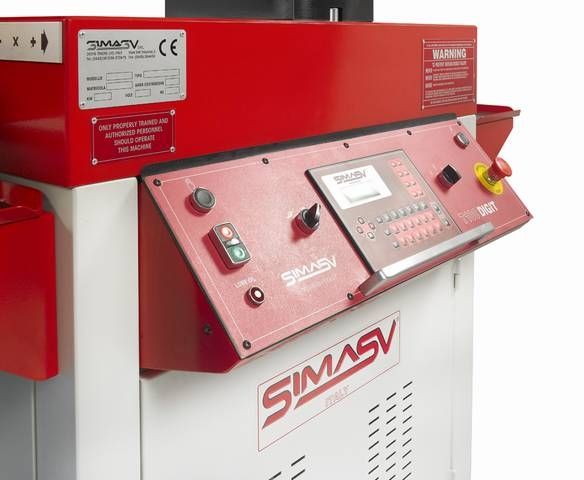

- adjustment through CN electronic positioner model Clock2

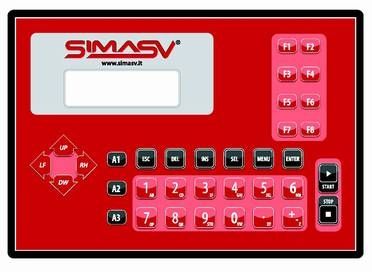

- 35 touch screen key keyboard, led 16x2 characters, an "X" axis stroke (punch), an "Y" axis stroke side gauge positioner
- 550 memory programs in "Y" axis and in "X" axis, each of the 2 axis has a program with 15 different lines (repeated 999 times)
- liquid crystal monitor at high resolution
- selection of 5 languages to program
- measurements in "inches" and "millimetres"
- program selector: manual, semiautomatic, automatic
- linear line measurement system for "CN" at high resolution and unlimited use
- precision positioning: ± 0;1 mm
- approach feed speed adjustment through flow control valve electrically driven and CN automatic control
- hydraulic single block power unit at servo valve positioning and with the possibility of adjusting the pressure
- electric layout and electromagnetic conductivity tested to "CE" standards
- die holder pins made in alloy steel, hardened and grounded
- forced lubrication through automatic electric pump
- automatic conventional cooling system of the hydraulic unit (cool)
- electric pedal control at low voltage (24 V) and push-button safety control timer;
- roomy side tool holder shelves.
-
