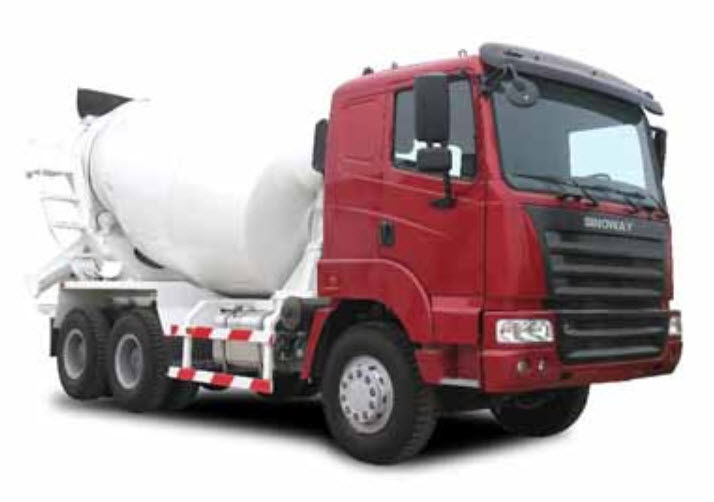

Concrete truck mixer
SWD5251GJB /SWD5257GJB
Sinoway Industrial (Shanghai)
Description of Concrete Mixing Truck
1. Water Supplying Style: Pressured-Air Water Supplying System.
2. The adoption of international brand air pressuring system units, coupled with the reliable and safe water tank and super volume, this system has the features of high pressure, big flowing-volume.
3. This type of engineering vehicle is mainly used to transport and mix concrete from a factory to the construction yard.
Transmission:
1. Fuller9, 9 forward&1 reverse;
2. Ratio: 12.11,8.08, 5.93,4.42,3.36,2.41,1.76,1.32,1.00,12.66R;
Steering:
ZF8098, hydraulic steering with power assistance
Ratio:22.2～26.2
Front axle:
HW07, Rigid stub axle with double T-cross section
Rear axle:
STR Pressed axle housing, dual reduction with hub reduction and differential locks between axles and wheels, Ratio:5.73
Clutch:
Single-plate dry coil-spring clutch, diameter 420, hydraulically operating with air assistance
Brakes:
1. Service brake: dual circuit compressed air brake;
2. Parking brake: spring energy operating on rear wheels;
3. Auxiliary brake: engine exhaust brake,ABS, metal piping, self-correcting arm;
-
