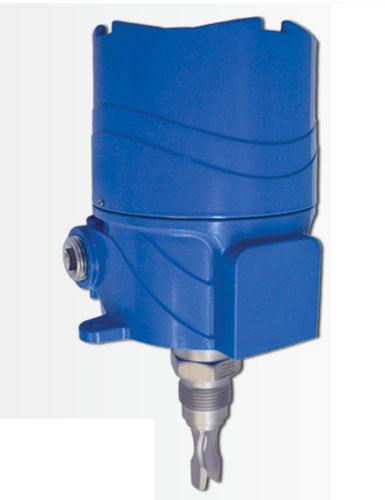

Vibrating level switch VTKR
for liquidssanitaryATEX

vibrating level switch
vibrating level switch
vibrating level switch
vibrating level switch
Add to favorites
Compare this product


Characteristics

Technology
vibrating
Medium
for liquids
Applications
sanitary
Approvals
ATEX
Material
aluminum, stainless steel
Mounting
threaded, flange
Other characteristics
IP66, explosion-proof, rugged
Process temperature

Min.: -10 °C
(14 °F)

Max.: 80 °C
(176 °F)

Process pressure

Min.: 0 bar
(0 psi)

Max.: 50 bar
(725.19 psi)

Description

The VTKR with a large robust explosion proof aluminum housing (GX) comes standard with a universal power supply: 18…36Vdc or 85 to 264Vac. It is an ideal solution for point level detection of liquids, regardless of the conductivity or dielectric of the product. All models are made in 316 Stainless Steel, can be ordered with a great variety of threaded, flange, or hygienic fittings, are available with Halar or epoxy coatings and can operate at temperatures up to 120ºC (248ºF). The VTKR also features a time delay adjustment of 1, 5, 10 or 20 seconds as well as a Wet/Dry selection for both High and Low level application requirements The GX comes standard with a glass window which enables visualization of LED switch status. The GX housing comes with the following certifications: UL, cUL, IECEX and ATEX for installation in hazardous environments. Application: Level Switch for Liquids Viscosity: 0.5...5000 cSt Power Supply: DC: 18...36Vdc (± 10%) / AC: 85...260Vac (50/60hz) Consumption: 10mA Output: Relay NO + NC (5A - 250Vac) Repeatability: < 0.5mm Delay: 1 to 20 sec. (ajustable) Set-Point: 13mm from de tip Housing Material: Aluminum w/ Glass Window Electrical Connection: 2 x 3/4" NPT Process Connection: BSP, NPT, flange or Sanitary connection Certification (Optional): ATEX, DEMKO 07 ATEX 0622294 / 0539 II 2 G EX d IIC Gb / 0539 II 2 D Ex tb IIIC Db / IECEx / IECx UL 08.0005U / Ex d IIC Gb / Ex tb IIIC Db Classification: Class I, Div. 1, Groups B, C, D / Class II, Div. 1, Groups E, F, G / Class III
