Electric cylinder
SMAC Moving Coil Actuators

Characteristics

  • Type:

    electric

  • Stroke :

    Min.: 10 mm

    Max.: 25 mm

Description

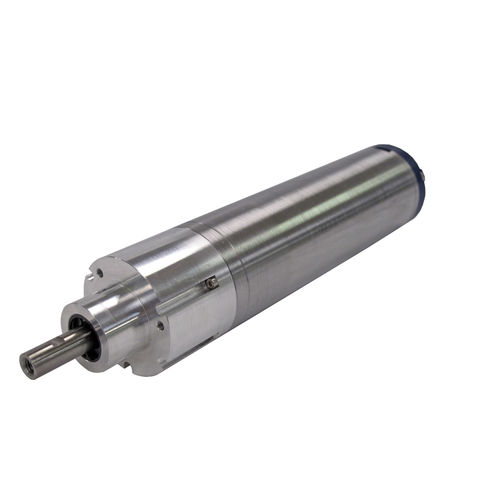

The CBL35 series is an electric cylinder that is ideal for use in the packaging industry. The unit has a life service of greater than or equal to 100,000,000 cycles, and it does not need any recalibration. The unit has a rated acceleration of lesser than or equal to 50 G with zero payload, which allows actuators to cycle at a rate of >2000 cpm. The unit is completely programmable in terms of force, position, and velocity at a short period of time.

The CBL35 series measures 95 mm x 35 mm in diameter depending on the stroke. Its stroke ranges from 10 mm up to 25 mm. The unit delivers a peak force of 15 N at 1.5 A for a 10 mm stroke.
