Electric cylinder / with integrated controller
SMAC Moving Coil Actuators
with integrated controller
Min.: 10 mm
Max.: 25 mm

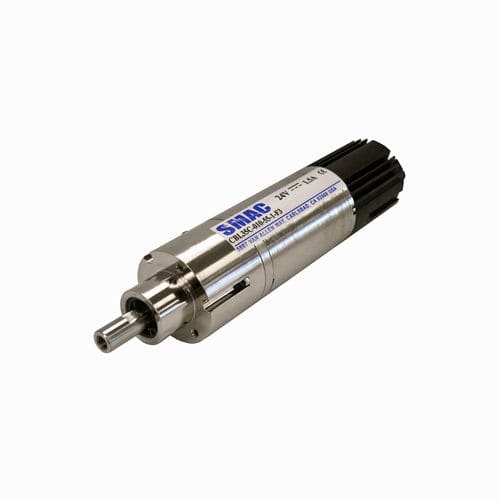

Introducing the 35mm diameter CBL35C electric cylinder with built-in controller. The new CBL35C series electric cylinder with built-in controller in a single package enables the direct replacement of existing pneumatic cylinders and retro-fits without any machine modifications required. With our built-in controller, the CBL35C can control the force, speed and velocity profile. The CBL35C with built-in controller allows simple installation and effective use of space.
The CBL35C provides significantly longer life, programmability, high speed, accuracy and energy efficiency while remaining price-competitive. The CBL35C also provides more sustainable solution by not requiring costly compressed air.
Our Graphical User Interface is also available for the built-in controller for easy, straightforward setup of parameters. It allows you to change product profiles on the fly and improves factory uptime.
• Dimensions [mm]: Ø35 x 135 - 217(depending on stroke)
• Stroke [mm]: 10, 25 (+1/-0)
• Acceleration[G]: up to 50 (zero payload)
• Peak Force [N]: up to 61
• Encoder Resolution [µm]: 5 (standard) 1 & 0.1 (Options)
• SMAC’s Patented: ‘Soft-Land’ Technology
