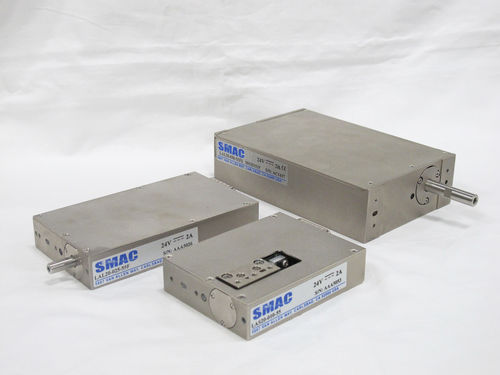

DC linear motor / 48V / 24V / compact
LAL series SMAC Moving Coil Actuators



  • Type:


  • Voltage :

    48V, 24V

  • Other characteristics:

    compact, high-speed, direct-drive, low-voltage, programmable

  • Stroke :

    Min.: 25 mm

    Max.: 150 mm

  • Force:

    Min.: 6 N

    Max.: 500 N


SMAC offers an extensive choice of electric linear actuators, LAL series, ranging from units with 5mm stroke in a compact unit only 15mm in height, to units with 150mm of stroke length or up to 500N peak force. Just like all SMAC actuators, the LAL series linear actuator has the unique ability to enable free and independent control of velocity, position and force simultaneously.

Additionally, the SMAC patented "Soft-Land" function is implemented for permitting delicate and controlled force when landing on weaker elements.

Moreover, the basic resolution on all SMAC actuators is 5µm with 1µm, 0.5µm and 0.1µm options available on most models. You can get in touch with is for any special requirements you may have.
