Labyrinth seal

Laminar Seal Rings

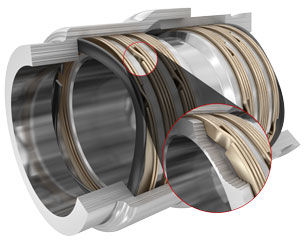

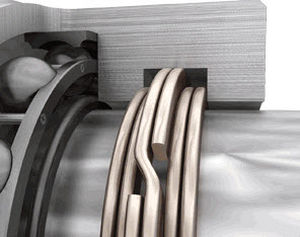

A Smalley Laminar Seal Ring is a metallic labyrinth seal consisting of multiple rings in a groove. This arrangement of the rings and the specific orientation of the rings are dictated by the application and the severity of the environment.

Seals assembly components from contamination
Numerous configurations available
Produced from metal; not rubber, neoprene, or other non-metallic materials
Able to withstand high temperatures and corrosive environments
