Rotary stage SR-4513
closed-loopvacuum-compatiblestainless steel

rotary stage
rotary stage
rotary stage
rotary stage
Add to favorites
Compare this product


Characteristics

Orientation
rotary
Other characteristics
vacuum-compatible, closed-loop, stainless steel, open-loop

Description

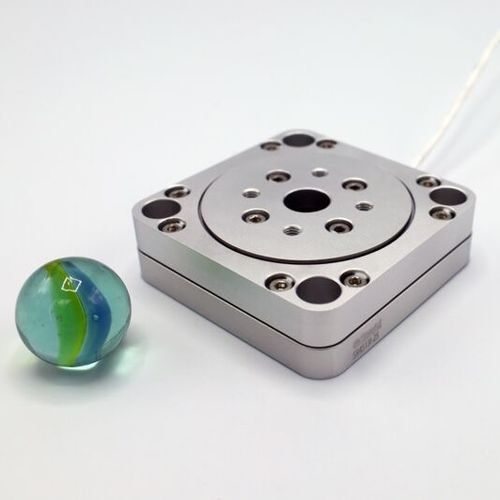

The SR-4513 rotation stage has a square base and features a free aperture opening of 8 mm diameter. Its height is relatively low compared to its footprint. This makes it easy to integrate this stage into flat positioning systems. It has a robust stainless steel bearing and is also available in a high-vacuum version. Travel [ - ∞ Blocking Torque [Ncm]≥ 5 Max. Normal Force [N]20 Dimensions [mm]45 x 45 x 12.5 Weight [g]89 Aperture [mm]8 Open-loop Angular Velocity [°/s]≥ 15 Open-Loop Resolution [µ]< 2 Closed-Loop Sensor TypesL, S Closed-Loop Resolution [µ]15 Options Material Option sAluminum as standard; steel base (-ST); titanium base (-TI); Performance Options Higher blocking torque

Catalogs
