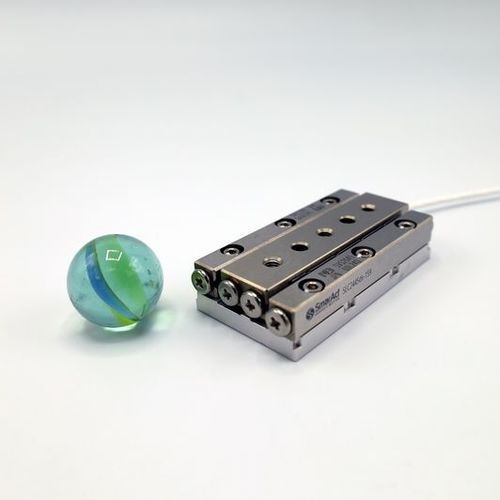

Linear stage SLC-2445

piezo1-axisclosed-loop

The SLC-2445 offers a travel range of 29 mm and a normal force of 30 N with dimensions of 45 x 24 x 10.5 mm. Please note that the downloadable documents for this linear piezo stage show the dimensions and specifications of an SLC-2445 for atmospheric or HV environments, equipped with an S-position sensor. For technical drawings and detailed specifications of other variants, such as UHV compatible stages, stages with higher blocking force or other sensor options, please contact our sales team. A high-performance closed-loop cryogenic variant is also available. Mechanical Blocking Force [N]≥ 3.5 Max. Normal Force [N]30 Max. Lift Force [N]1.5 Dimensions [mm]45 x 24 x 10.5 Weight [g]54 Open-loop Resolution [nm]< 1 Options Material Options Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK) Mechanical Options U-shaped base for higher stiffness (-W) increases width to 30 mm Performance Options Higher blocking force (-D): +1.5 N Cryogenic Option Yes
