piezoelectric positioner / linear / 1-axis / precision
SLC-1740 SmarAct GmbH

{{requestButtons}}

Characteristics

  • Type:

    piezoelectric

  • Orientation:

    linear

  • Number of axes:

    1-axis

  • Other characteristics:

    precision, compact

  • Payload:

    3 kg (6.614 lb)

Description

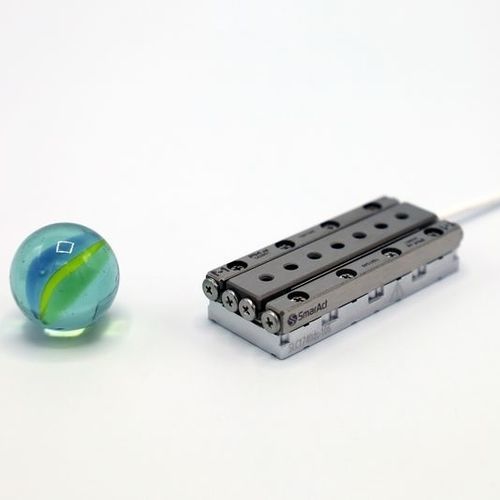

Nanometer Precision Linear Positioner
The SLC-1740 comes in the dimensions of 40 x 17 x 8.5 mm³. This positioner features a travel range of 26 mm and a normal load of 30 N (3 kg).

resolution: ‹ 1 nm
normal load: 30 N (3 kg)
vacuum: down to 10-11 mbar
travel range: 26 mm
non magnetic: available
size: 40 x 17 x 8.5 mm3
