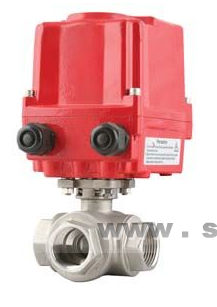

Ball valve T-EAV 902 series
electrically-operatedcontrolfor water

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
electrically-operated
Function
control
Media
for water
Number of channels
3-way
Pressure

16 bar, 40 bar
(232.1 psi, 580.2 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 160 °C
(320 °F)

Description

T-EAV902 series 3/2 way ball valves are actuated by electric current and have a tough AISI 316 stainless-steel build, available in versions including electric-actuated with on-off control and electric-actuated with proportional control. Electric actuator consists of an output torque between 40 Nm-60 Nm, aluminium and high quality housing made of hard anodized, polyester-finished alloy. Additionally, it has weather-resistant coating of IP67, handheld over-ride hand-wheel function and hexagon. It is equipped with a 10 W heater to avoid humidity, a reversible motor of AC 220 V or DC 24 V and turns at 90 degrees. Actuator opens/closes in 12 seconds and is connected to valve as per ISO5211 connections and flange connections are F03/F05/F07. It has a working temperature of 20-160 degrees C, working pressures of PN 40 bar (1/2"...11/4") and 16 bar (11/2"...3") and the Valves are 100% tested.
