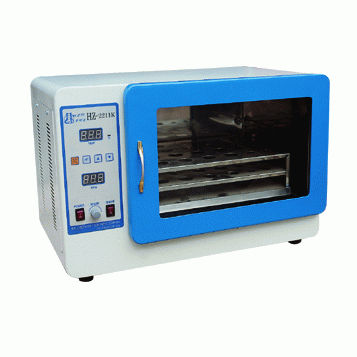

Mechanical laboratory agitator / orbital / digital / for beakers
HZ Series SMT MAX

Characteristics

  • Type:

    mechanical

  • Motion type:

    orbital

  • Display:

    digital

  • Product applications:

    for beakers

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 300 rpm (1884.96 rad.min-1)

Description

Specifications


Model
HZ-8211K
HZ-8811K
HZ-9211K
HZ-9511K
HZ-9811K
Shaker
orbit
Rotational speed(rpm)
0~250
0~280
0~300
1 platform:0~250
2 platforms:0~220
0~250
Shaking Amplitude(mm)
θ28
θ28
θ3
θ30
θ28
Temperature Range:
Rm Temp.~50°C
Rm Temp.~50°C
Rm Temp.~60°C
Rm Temp.~60°C
Rm Temp.~50°C
Display:
LED
Motor:
AC220V No Brush DC Motor DC24V 80W
Platform(mm)
320×400
420×350
420×330
400×500
420×3500
Inner Dimension(mm)
320×400×330
420×350×240
420×330×320
400×500×110(top)
400×500×220(botton)
420×350×280(top)
420x350x400(Botton)
Dimension(mm)
420×680×500
510×590×560
610×500×520
580×610×650
660×620×1230
