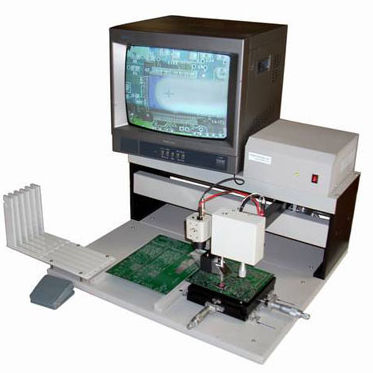

SMT pick-and-place machine SMD-TP-V

benchtop

Helps you accurately place your surface components on PCB boards. ● Suitable for prototype and small quantity production. ● Can be used for QFP, PLCC, BGA, SMT resistors, capacitors, etc. ● Can be used to work on pitches as fine as 0.5mm. ● Max. Working area 370mmx300m. ● Max. X direction movement 500mm. ● Max. Y direction movement 300mm. ● Max. Z direction movement 10m, 360 degree rotation. ● Electrical vacuum pick tool for easy and accurate operation. ● Foot vacuum switch. ● With vision vertical view system. ● Easy hand resting holder. ● No computer or software programming needed. ● Optional additional reel frames. It comes with one reel frame. The platform has room for six frames. Each frame can mount five reel feeders. ● Color microscope CCD video camera. ● Shipping weight: 100 lb. ● One-year manufacture's warranty. Note: the manual pick and place machine is an entry level SMT device. Its ability is limited. Video monitor or TV not included.
