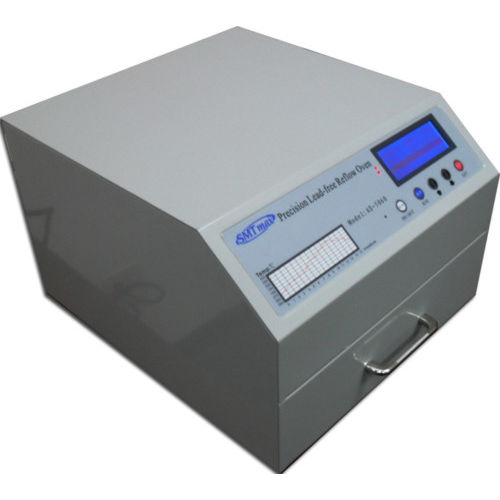

Reflow soldering oven
max. 1 650 W | AS-5060
SMT MAX
Features/ Specification:
* Working voltage: AC110V
* Working frequency:60Hz
* Maximum output power: 1650W
* Heating methods: infrared radiation and hot air mix heating
* Operating system: Chinese-English operating system
* Working mode: automatic soldering mode, maintenance mode adjustable
* Temperature curve paragraph: warm-up, heating, soldering, heat
* preservation and cooling segment.
* Range of temperature and time on warm-up: 70~150℃, 0~5Min
* Range of temperature and time on heating: warm-up temperature to 250℃,
* 0~5Min
* Range of temperature and time on soldering: heating temperature to
* 300℃, 0~30s
* Range of temperature and time on heating preservation: soldering
* temperature －(0~50℃)
* Effective soldering area: 305×320mm
* Unit Size: 460×372×275mm
