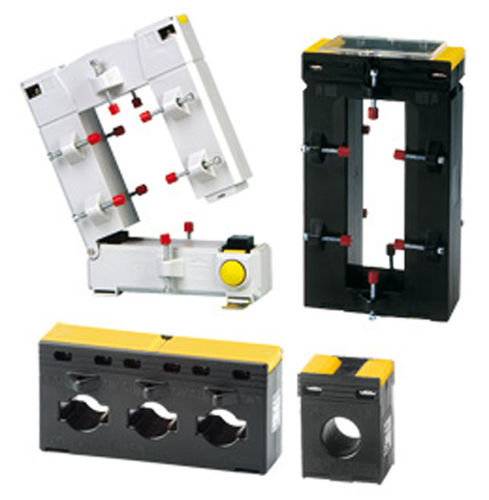

Current transformer 192 series
instrumentcast resinindustrial

current transformer
current transformer
Add to favorites
Compare this product


Characteristics

Type
current, instrument
Configuration
cast resin
Applications
industrial
Mounting
DIN rail mount
Primary voltage

24 V, 230 V

Secondary voltage

Min.: 0 V

Max.: 10 V

Primary current

Min.: 5 A

Max.: 5,000 A

Secondary current

5 A

Description

SOCOMEC current transformers provide a standard current to the secondary proportional to the primary current, which is adapted to the related device's rating. Standard version features detachable terminal covers and double terminals, which allow short-circuiting of the secondary with no extra risk. Mounting is done with two screw-on metal brackets or in a few instances they have a clip-on DIN rail mounting. Either screws or fast-on terminals are used for making connections. Standard accuracy class is 0.5, and for higher necessary power, it can be 1 or 3. The dielectric quality is 3 kV - 50 Hz - 1 mn and operating frequency is 50-60 Hz. They have a permanent overload of 1.2 In.
