wire electrical discharge machine / high-speed
AL400G Sodick

{{requestButtons}}

Characteristics

  • Type:

    wire

  • Other characteristics:

    high-speed

  • X travel:

    400 mm

  • Y travel:

    300 mm

  • Z travel:

    250 mm

Description

Wire-cut EDM

Linear Motor Drive /High speed & High Performance Wire-cut EDM

AL400G
Achieving the superlative performance with in-house developed core technologies

al400g

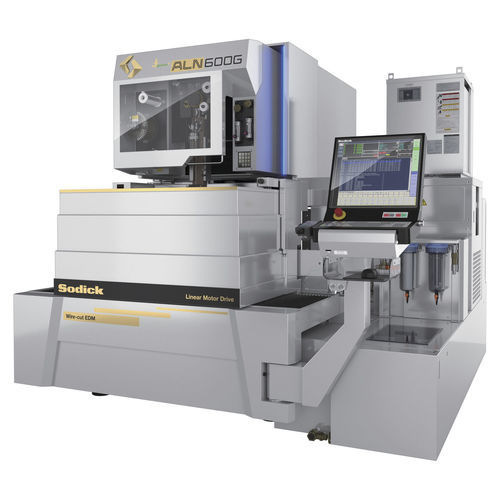

* The picture shown may slightly differ from the actual machine.

Main Features
4-axis linear motor drive
Direct drive method without a ball screw was established, utilizing a high performance linear motor developed and manufactured in-house for the 4 axes of X, Y, U and V. Precise axis movements without backlash can be maintained semi-permanently. Demonstrates accurate position control and excellent discharge characteristics while machining, through the high response and high following characteristics which are the features of the linear motor.
New Power Supply Unit & New Machining Circuit
Has a 19-inch horizontal type touch panel, realizing the most up-to-date man-machine interface and also ensuring ease of viewing and ease of use. This machine is standardly equipped with the "barrel-free effect control II" which greatly reduces the barrel amount during machining, and "TMP Control II" which improves the surface roughness of the second cut and realizes high speed finish machining.
Improves Operability and Productivity
The operability is improved with the standardly equipped ceramic work stand, square shaped table, automatic three sides up and down type processing tank and Z-axis following automatic liquid level control function. The high speed automatic wire connection unit (FJ-AWT) and the intermediate liquid level control function enables unattended high precision machining can be performed, which improves productivity.
