Small-hole Drilling EDM
CNC Very-small-hole /Drilling EDM
High response of linear motor drive which realizes continuous and high-precision drilling EDM of very small holes

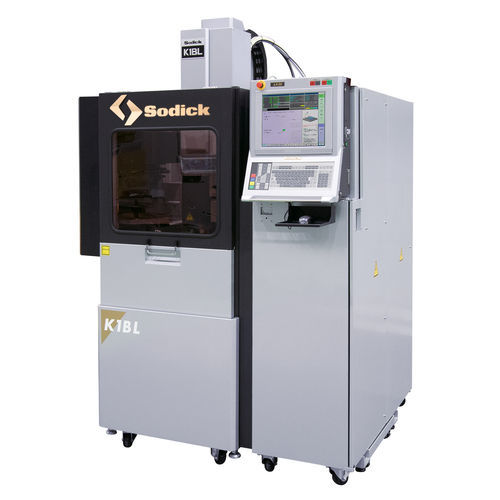

* The picture shown may slightly differ from the actual machine.
Main Features
Linear motor provied on main axis
A high-speed, high-response linear motor provided on Z axis expands the machining range, stabilizes the operation and reduces the electrode wear.
High-rigidity double-column structure
A high-rigidity double-column structure has been adopted to enable drilling EDM of very small holes. The structure, wherein a column is held by two struts, secures good resistance to thermal deformation and high rigidity, remarkably enhancing machining accuracy.
Automatic electrode changer (AEC)
An AEC provided for this model changes electrodes reliably to facilitate long and continuous drilling EDM of many holes
