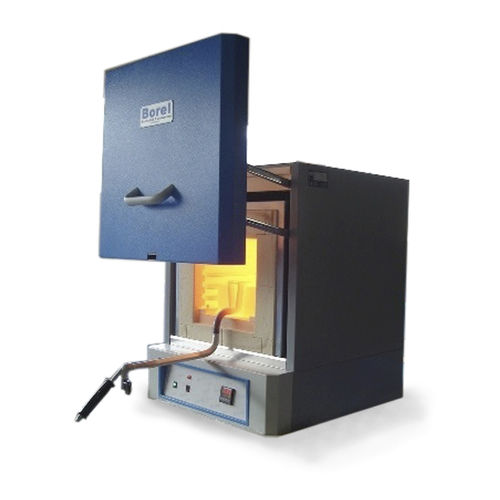

heat treatment furnace / chamber / electric / controlled atmosphere
FP1100-1200-P SOLO Swiss & BOREL Swiss



  • Function:

    heat treatment

  • Configuration:


  • Heat source:


  • Atmosphere:

    controlled atmosphere, inert gas


Definition: A ladle is a mobile muffle in refractory steel provided with an inert gas inlet. The muffle is designed to be placed in a chamber furnace with the parts themselves arranged in the muffle. It is then possible to work under protective gas.
Construction: The muffle is parallelepiped-shaped (with one hinged face closing by gravity), with a gas inlet (which also serves as a handle) and a mobile floor grid system on which the
parts are placed. The mobile floor makes it easy to transfer the parts from the muffle to the quenching tank.
Heating: The maximum temperature withstood by the muffles is 1100 °C. Our muffles are available with our chamber furnaces for 1100 °C, or 1200 °C for more intensive use.
Delivered with: Our packs are composed of a furnace able to receive a muffle, a ladle and protection for the heating elements to avoid any damaging contact between them and the muffle.
Type of gas: Working with non-flammable gas (nitrogen, forming gas 95-5 etc.).
Pneumatics: Our muffles are fitted with a valve to regulate the air supply. Type EO M10L connector.
Documentation: CE marking and operating instructions in English.
