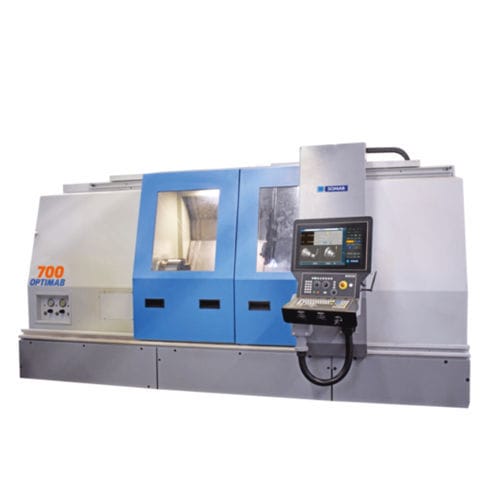

CNC lathe OPTIMAB 700
horizontal4-axis12 tools

CNC lathe
CNC lathe
CNC lathe
CNC lathe
CNC lathe
CNC lathe
CNC lathe
CNC lathe
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
4-axis
Number of tool stations
12 tools
Other characteristics
universal, precision, inclined bed, with turret
Diameter

750 mm
(29.53 in)

Spindle speed

2,000 rpm
(12,566.371 rad.min-1)

Bar capacity

120 mm
(5 in)

Axe X

435 mm
(17 in)

Axe Z

1,450 mm, 2,200 mm, 3,000 mm
(57 in, 87 in, 118 in)

Nominal power

28 kW, 43 kW
(38.1 hp, 58.5 hp)

Overall lenght

5,650 mm, 6,400 mm, 7,200 mm
(222 in, 252 in, 283 in)

Overall width

2,480 mm
(98 in)

Overall height

2,460 mm
(97 in)

Weight

7,500 kg, 8,500 kg, 10,500 kg
(16,535 lb, 18,739 lb, 23,149 lb)

Description

Bed made of stabilized cast iron Rigid roller preload guide ways for longitudinal axis Massive assembled prismatic guide ways made of hardened steel for transversal axis Preload precision ball screws Digital motorization with absolute measuring encoders Spindle assembled with super precision ball bearings greased for life Rear side automatic tool holder turret Chuck and tailstock manual or hydraulic Ergonomic and independent keyboard movable all along the working area. EQUIPMENT Chuck with 3 concentric jaws Tailstock MK6, Ø150mm insert, 160mm of stroke Automatic turret VDI 50, 12 stations Cartridge spindle with super Precision ball bearings, lubricated for life. Gearbox with 2 speeds (1/1;1/4), controlled by M function Grinded ballscrews and double nut Sliding and swiveling console 1 or 2 hand wheels Chip conveyor 3.3 bar coolant system Sliding front door and security lock for full protection interior lighting OPTIONS: LIVE TOOLS and C AXIS manual or hydraulic version (chuck and tailstock) clamping plier chuck Work-piece collector Bar pulling system Bar feeder Turret: MULTIFIX manual turret D1 type with VDI 50 and rest plates Fix steady rest Ø20 to 210mm with 3 size sets of 3 roller arms: 3 roller arms for Ø20mm to 92mm 3 roller arms for Ø50mm to 130mm 3 roller arms for Ø130mm to 210mm Fix steady rest Ø190 to 350mm with 2 size sets of 3 roller arms: 3 roller arms for Ø190mm to 270mm 3 roller arms for Ø270mm to 350mm Steady rests manual version or hydraulic self centering DELIVERABLE: isolation transformer toolholders clamping pliers CNC Learning SOMAB PL + S VT 15" color LCD flat touch screen QWERTY alphanumeric keyboard Two handwheels
