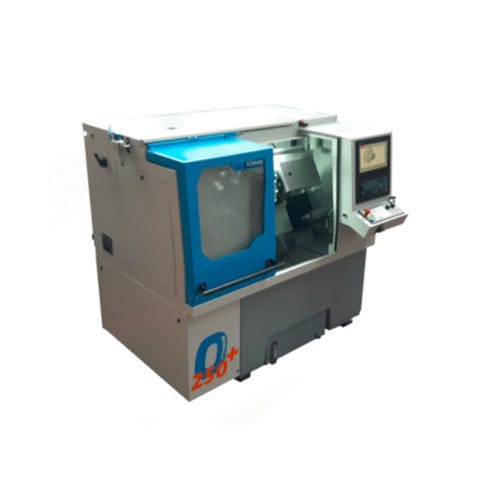

CNC lathe OPTIMAB 250horizontal2-axis3-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis, 3-axis
- Number of tool stations
- 12 tools
- Other characteristics
- universal, high-precision, rigid, with turret
- Diameter
350 mm
(13.78 in)- Spindle speed
5,000 rpm
(31,415.927 rad.min-1)- Bar capacity
54 mm
(2 in)- Axe X
160 mm
(6 in)- Axe Z
500 mm
(20 in)- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
2,000 mm
(79 in)- Overall width
1,500 mm
(59 in)- Overall height
1,700 mm
(67 in)- Weight
2,600 kg
(5,732 lb)
Description
monobloc base
Rigid linear guide with preloaded saddle
Cartridge spindle with super precision ball bearings, lubricated for life.
Chuck and tailstock (manual, pneumatic or hydraulic)
Automatic turret
Grinded ballscrews and double nut
Digital drives
Sliding and adjustable console
EQUIPMENT
Chuck with 3 concentric jaws
Tailstock MK3
Automatic turret VDI 20, 12 stations
Cartridge spindle with super Precision ball bearings, lubricated for life.
Grinded ballscrews and double nut
Sliding and swiveling console
1 or 2 hand wheels
A chip tray with discharge to the right of the machine.
3.3 bar coolant system
Sliding front door and security lock for full protection
interior lighting
OPTIONS:
LIVE TOOLS and C AXIS
manual, pneumatic or hydraulic version (chuck and tailstock)
Chip conveyor
clamping plier chuck
Work-piece collector
Bar pulling system
Bar feeder
VDI 30 turret, 8 positions
MULTIFIX manual turret E type
DELIVERABLE:
isolation transformer
toolholders
clamping pliers
