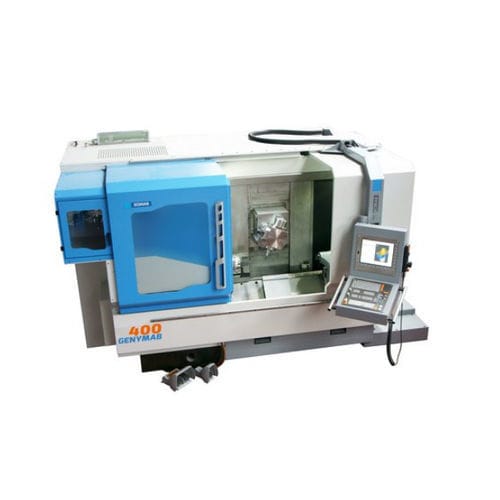

CNC milling-turning center GENYMAB 400

horizontal4-axis5-axis

• Reconstituted granite monobloc base • Fixed support (non-rotating) for turning tools: o ensures high rigidity o turning tool support at 45° to resume cutting forces • Elaborated machining: grooves, plunge milling, • External gears with module mill or mother mill • Internal gear by slotting EQUIPMENT B axis can be mechanicaly clamped in 144 positions with Hirth teeth at 2,5° 28 positions Tool magazine capacity 3 jaws automatic self-centering chuck Chip conveyor 7 bars coolant system with 30µm filter cartridge Full protection with sliding front door and security lock Automatic volumetric greasing interior lighting Sliding and swiveling operator console, with 1 or 2 hanwheels Spindle power display (percentage of available power) OPTIONS: Precision optical linear scales Fixed grooved table 1600x340 (mm) or removable table 400x400 (mm) MK4 hydraulic tailstock (on table or front bed) VDI 40 Automatic turret, 12 stations on front bed medium or high pressure coolant system: 14 bars, 35 bars... 50 sations automated tool changer (28 + 22) workpiece ejector controlled by M function workpiece recovery system (on sub spindle) workpiece probe tool probe Self centering steady rest Bar feeder DELIVERABLE: Isolation transformer ISO40, 45° toolholders for turning tool size 25x25
