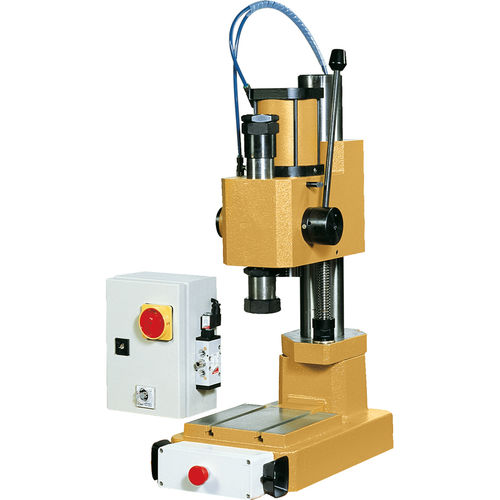

Pneumatic press S1PBTmechanicalbendingstraightening
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic, mechanical
- Function
- bending, straightening, drawing, die-cutting, riveting, trimming
- Control
- hand-operated
- Other characteristics
- vertical
- Force
4.4 kN
- Opening
350 mm
(14 in)- Stroke
70 mm
(3 in)- Table width
220 mm
(9 in)- Table length
220 mm
(9 in)- Max. pressure
6 bar
(87 psi)- Weight
165 kg
(364 lb)- Overall length
510 mm
(20 in)- Overall width
305 mm
(12 in)- Overall height
1,090 mm
(43 in)
Description
Available with manual, pneumatic or hydropneumatic control in a range of sizes suitable for riveting, trimming, drawing, keying, sizing, straightening, bending, die-cutting.
Suitable whenever adjustable thrust and accurate stroke control are needed and all models are equipped with a mechanical stop.
Working height of manual and pneumatic models is adjusted by moving the machine body on the column.
Mechanical presses with pneumatic thrust and adjustable pressure up to 450 kg with lever adjustment : S2PBT - S1PBT with two-hand timed safety control
