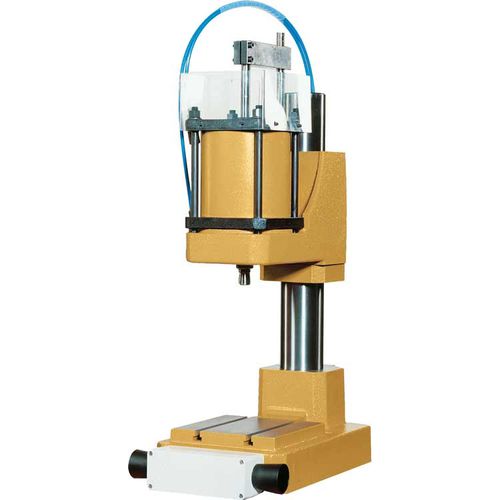

Pneumatic press S17B
bendingstraighteningdrawing

pneumatic press
pneumatic press
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Function
bending, straightening, drawing, cutting, riveting, trimming
Other characteristics
vertical
Force

14,709.9 N

Opening

435 mm
(17 in)

Stroke

110 mm
(4 in)

Table width

220 mm
(9 in)

Table length

220 mm
(9 in)

Max. pressure

6 bar
(87 psi)

Weight

165 kg
(364 lb)

Overall length

510 mm
(20 in)

Overall width

305 mm
(12 in)

Overall height

1,090 mm
(43 in)

Description

Available with manual, pneumatic or hydropneumatic control in a range of sizes suitable for riveting, trimming, drawing, keying, sizing, straightening, bending, die-cutting. Suitable whenever adjustable thrust and accurate stroke control are needed and all models are equipped with a mechanical stop. Working height of manual and pneumatic models is adjusted by moving the machine body on the column. Pneumatic bench type presses with adjustable pressure up to 1500 kg - available with cylinder bore 70 - 100 - 125 - 180 mm and rotation preventing pin : S8B - S17B with two-hand safety control
