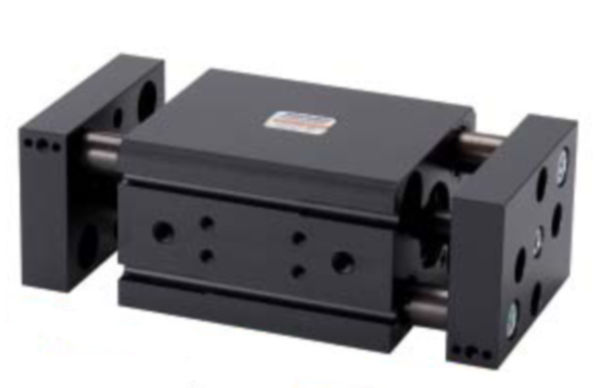

Long stroke pneumatic parallel gripper
10 - 100 mm, 60 - 800 N | MGH8000 series SOMMER-automatic

Long Stroke Gripper

Power transmission
Direct drive synchronized by gear
- Maximum gripper force
- Central grip action achieved with synchronized gripper jaws
- High-precision repeatability

Guide
Triple round guide
- High precision
- Overlapping guide rods

Gripper jaw location
Location of individual gripper jaws using centring sleeves
- Precise positioning of individual gripper jaws
- Fast, economical and therefore cost-effective changing of gripper jaws

Drive unit
Two double-action pneumatic cylinders
- High drive force when opening and closing
- Gripping force of up to 910N

More specifications
