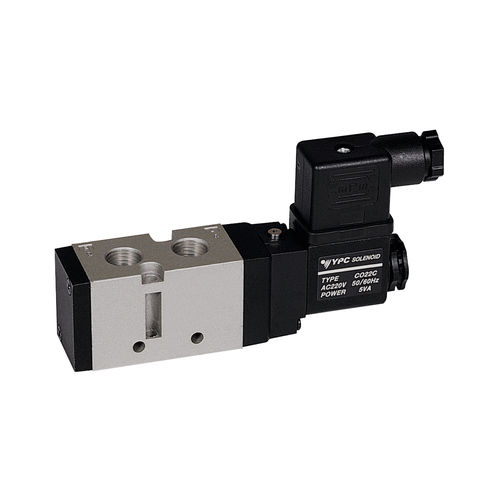

pneumatically-operated pneumatic directional control valve / solenoid-operated / 5/2-way / spring-return
MV4x-5214 series Sommer-Technik

{{requestButtons}}

Characteristics

  • Actuating method:

    pneumatically-operated, solenoid-operated

  • Ports/positions:

    5/2-way

  • Other characteristics:

    spring-return, standard

  • Flow rate:

    Min.: 0 l/min (0 us gal/min)

    Max.: 980 l/min (259 us gal/min)

  • Operating pressure:

    Min.: 2 bar (29 psi)

    Max.: 10 bar (145 psi)

Description

The MV41 from Sommer Technik is a 5/2 way magnetic valve that operates on 2.5 W / 5.5 VA (60 Hz). Its protection follows the standards of IP 65. With a rate of 980 liters per minute, its switching time goes for less than 25 seconds. It has operational pressure ranging from 1.5 bar up to 10 bar.
