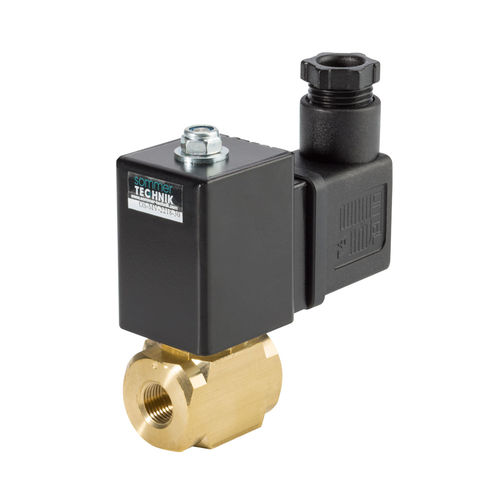

Direct-operated solenoid valve OS-MV-2218-302-wayoilthreaded
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Medium
- oil
- Body
- threaded, IP54, brass
- Other characteristics
- DIN
- DN
2 mm
(0.079 in)- Voltage
24 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 95 °C
(203 °F)- Pressure
40 bar
(580.2 psi)
Description
Perfect for the integration of a second lubricant circuit, this 2/2-way valve can engage the circuit (pressure-free), while the OS-BP pump is in non-operating state.
Model versions: - - currentless when closed
Housing material: - - brass
Cyclic duration factor: - - 100 %
Appliance outlet: - - DIN 43650
Voltage: - - 24 VDC
Permissible voltage tolerance: - - –15 % to +10 %
Power consumption: - - 11 VA / 8 W
Protection class: - - IP 54 (with appliance inlet))
Max. ambient temperature: - - +50 °C
Coil adjustment: - - infinitely variable 360°
