Oiler OS series

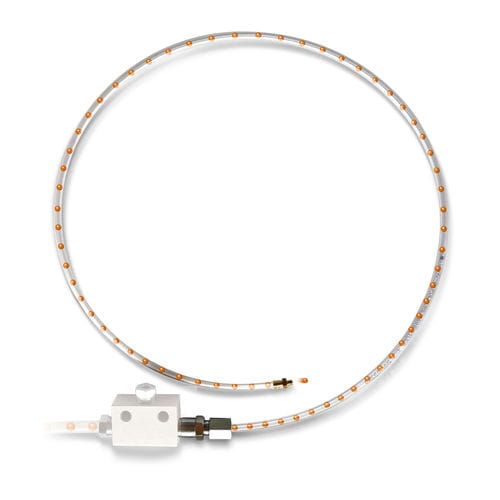

- The Loop Oiler Tight spaces or lubricating points are difficult to access can be quite a challenge for design engineers. To solve the problem you can install a flexible PU-hose extension (max. 2 m, outside-Ø 4 mm) on our OS-dosing valve to help you guide the oil around corners or into closed spaces (engine blocks, machine beds, etc.). Cut the PU-hose to the desired length, use the enclosed cartridge to fill in the desired oil and attach the hose end using a M3-fitting (wrench size 4.5 mm, nominal width 1.5 mm) included in the delivery. 1) Hose (Order-No. S-PUN2,5) 2) Plug fitting (Order-No. 3045-4/2,5-M3) 3) Cutting ring ø 4 mm, not visible (Order-No. OS-SR4) 4) Dosing valve (Order-No. OS005-OS100) 5) Distributor (Order-No. OS-V1) 6) Cartridge and dosing needle
