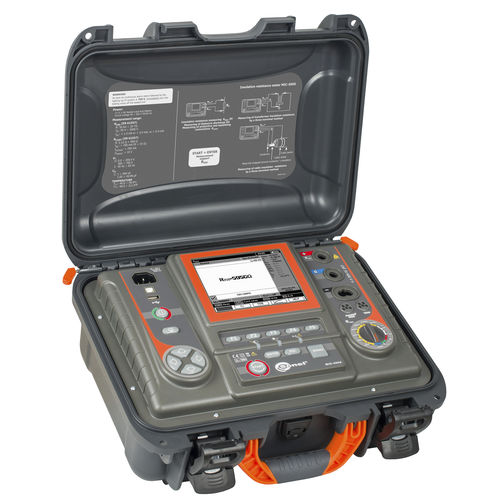

Insulation tester MIC-5050
continuityinsulation resistanceelectric

insulation tester
insulation tester
insulation tester
Add to favorites
Compare this product


Characteristics

Test type
insulation, continuity, insulation resistance, electric, dielectric, electrical safety
Tested product
for electrical installations, cable, installation, motor, for transformers, stator winding
Applications
industrial, diagnostic, for substations, for power systems, for railway applications
Configuration
portable
Other characteristics
digital, automatic, USB, with LCD screen, rugged, with memory

Description

measurement voltage any in the range of: 50...5000 V (50...1000 V at 10 V and 1...5 kV at 25 V), continuous indication of measured insulation resistance or leakage current, automatic discharge of measured object capacitance voltage after the end of insulation resistance measurement, acoustic signaling of 5 seconds intervals to facilitate capturing time characteristics, adjustable measuring time to 99'59'’, metered T1, T2 and T3 test times for measuring one or two absorption coefficients from the range of 1…600 s, polarization index (PI), absorption coefficients Ab1, Ab2 and dielectric absorption ratio (DAR) measurement, indication of actual test voltage during measurement, 1.2 mA, 3 mA and 5 mA test current, insulation resistance measurement using two- or three-wire method, measurements with test leads up to 20 m... protection against measuring live objects, automatic measurement of multiple core cables with the additional AutoISO-5000 adapter measurement of capacitance during the measurement of RISO. measurement of temperature (with additional probe - WASONT1), step voltage insulation resistance measurement (SV), Dielectric Discharge calculation (DD), location of damage (burnout), Digital filters function for measurements in high noise environment. Measurement of leakage current during insulation resistance testing. DC and AC voltage measurement in the range of 0...750 V.
