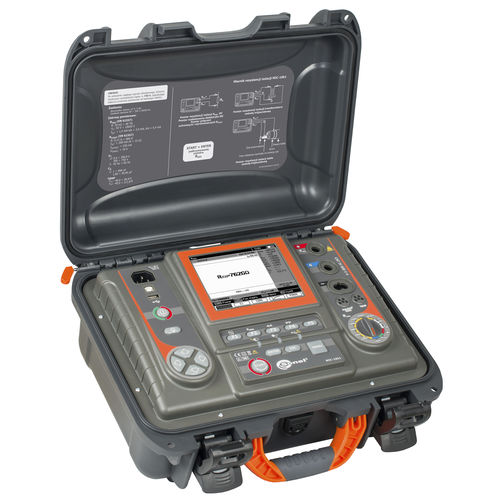

insulation resistance tester / voltage / continuity / leakage current
voltage, continuity, insulation resistance, leakage current
for electrical installations, cable
measurement voltage any in the range of: 50…10000 V (50...1000 V at 10 V and 1...10 kV at 25 V),
continuous indication of measured insulation resistance or leakage current,
automatic discharge of measured object capacitance voltage after the end of insulation resistance measurement,
acoustic signaling of 5 seconds intervals to facilitate capturing time characteristics,
adjustable measuring time to 99'59'’,
metered T1, T2 and T3 test times for measuring one or two absorption coefficients from the range of 1…600 s,
polarization index (PI), absorption coefficients Ab1, Ab2 and dielectric absorption ratio (DAR) measurement,
indication of actual test voltage during measurement,
1.2 mA, 3 mA and 6 mA test current,
insulation resistance measurement using two- or three-wire method,
measurements with test leads up to 20 m...
protection against measuring live objects,
automatic measurement of multiple core cables with the additional AutoISO-5000 adapter (for MIC-10k1 max. voltage 5 kV)
measurement of capacitance during the measurement of RISO.
measurement of temperature (with additional probe - WASONT1),
step voltage insulation resistance measurement (SV),
Dielectric Discharge calculation (DD),
location of damage (burnout),
Digital filters function for measurements in high noise environment.
Measurement of leakage current during insulation resistance testing.
DC and AC voltage measurement in the range of 0...750 V.
Drawing graphs on the display during measurement.
