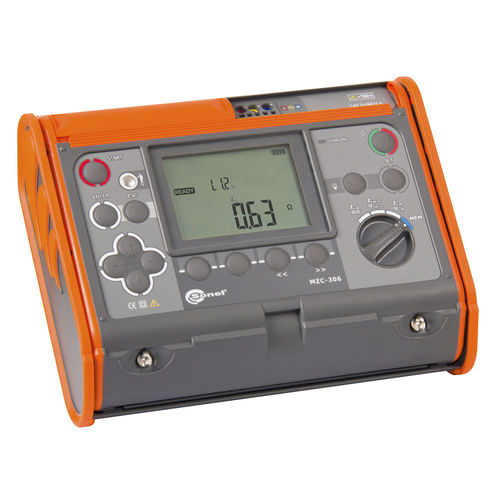

Electric tester MZC-306electrical safetyimpedanceshort-circuit current
Add to favorites
Compare this product
Characteristics
- Test type
- electric, electrical safety, impedance, short-circuit current
- Tested product
- for electrical installations, installation, for transformers, surge protection device
- Applications
- industrial, diagnostic, for power systems
- Configuration
- portable
- Other characteristics
- digital, automatic, USB, with LCD screen, rugged, with memory
Description
Loop impedance measurement with resolution 0,01 Ω
Loop impedance measurement without tripping the circuit breaker > 30 mA with resolution 0,01 Ω (100...440 V)
Measurements possible in installations 110/190 V, 115/200 V, 127/220 V, 220/380 V, 230/400 V, 240/415 V, 290/500 V and 400/690 V (range 100...750 V)
Short circuit current indication
Voltage measurement up to 750 V and up to 250 V with resolution 0,1 V
Measurements using Uni-Schuko adapter or test wires 1,2; 5; 10 and 20 m
Memory of 990 records
USB connection with PC
Powered by disposable or rechargeable (4xLR14)
