programmable calibrator / voltage / resistance / for insulation tester
SRP-10G0-10T0 Sonel S.A.

{{requestButtons}}

Characteristics

  • Measured physical value:

    voltage, resistance

  • Applications:

    for insulation tester

  • Options:

    digital, laboratory, programmable, standard

  • Temperature:

    Min.: 10 °C (50 °F)

    Max.: 30 °C (86 °F)

Description

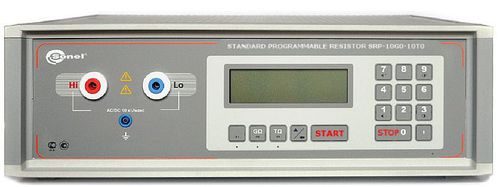

The SRP-10G0-10T0 calibrator is a source of high resistance, used as a standard in calibration and tests of analogue and digital insulation resistance meters.
The setted resistance by the calibrator can be maintained for a long time under external direct voltage up to 10 000 V, provided that the current in the measuring circuit does not exceed 3 mA.
The required resistance is set by the user using the calibrator's touch keypad or via an external PC application. The required value is set automatically thanks to the switching of a precise resistance matrix. The controlling processor calculates the required combination of resistors, ensuring adequate resistance precision.
