Electric tester MZC-310Selectrical safetyimpedanceshort-circuit current
Add to favorites
Compare this product
Characteristics
- Test type
- electric, electrical safety, impedance, short-circuit current
- Tested product
- for electrical installations, installation, for transformers, surge protection device
- Applications
- industrial, diagnostic, for power systems, for substations, for railway applications
- Configuration
- portable
- Other characteristics
- digital, automatic, with LCD screen, rugged, with memory
Description

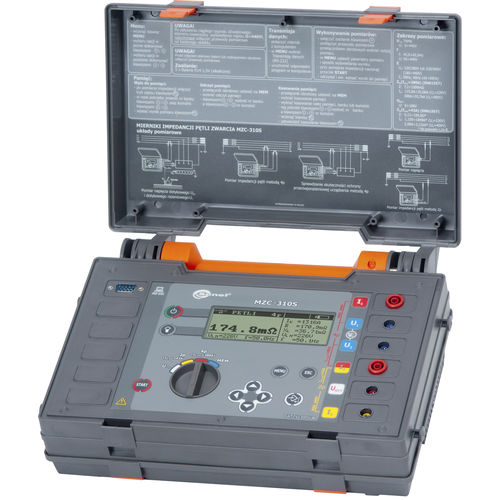

The MZC310S is a professional portable meter for testing electrical installations with over-current circuit breakers. The instrument measures short-circuit L-PE, L-N and L-L loop and prospective short-circuit loop current. A measurements can be done either with low testing current (up to 42 A) with 2-pole method or high testing current (up to 280 A) with 4-pole method that enables measurements with very high accuracy and resolution.
The results can be stored in the internal memory and send to a computer via serial interface.
Catalogs
Sonel Measurement instruments 2023
184 Pages
