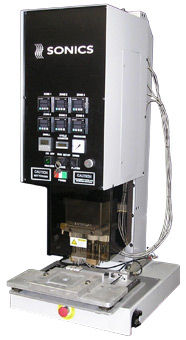

Automatic assembly press for self clinching fasteners
6" x 6"
Sonics
Sonics offers bench model and custom machinery for single point, multi-point or multi-plane thermal staking and inserting applications. Typical inserting applications include driving metal parts, such as a threaded brass insert, into a hollow boss opening. Typical staking applications include forming a solid boss into a rivet type head to capture or retain a secondary part.
6 heat zones, adjustable from 80-999° F each
6 microprocessor-based digital temperature controls
Heater on/off and digital time controls
6” (152.4 mm) x 6” (152.4 mm) upper tooling platen
Up to 1-1/2 tons of downward force
Adjustable power head height
Tool advance shock absorber
Optional pneumatic slide table
