vertical-line laser level / cross-line laser / magnetic / horizontal

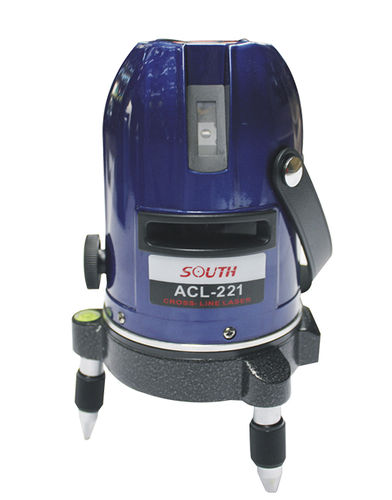

ACL-221 South Surveying & Mapping Instrument Co., Ltd



  • Type:

    vertical-line laser, cross-line laser

  • Other characteristics:

    magnetic, horizontal, non-rotating


Self-Leveling Crossline Laser (2V 1H”)
●Beam: 1 horizontal line and 2 vertical line, forming cross at wall and ceiling, Plumb down-beam, with tangent screw
●Wave length: 635mm
●Operating temp: -10 °C~50° C
●Leveling Accuracy: ±2mm/10m
●Working Range: Indoor, radius 10m:30m (with detector)
●Selt-leveling method: Magnetic damping system
●Compensation Range: ±2°
●Power: 3X1.5 V batteries
●Laser flashing and buzzing when self-leceling over range
