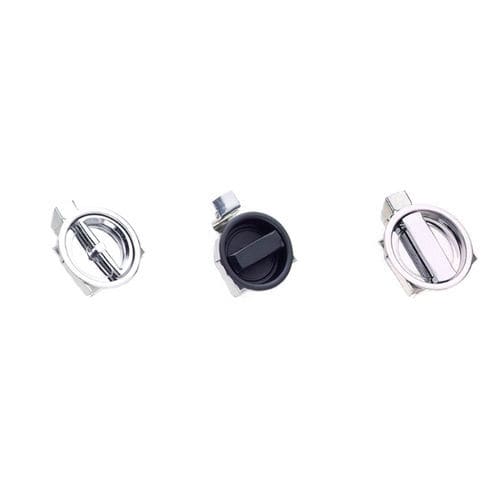

Cam latch 01 series

stainless steelflush

01 - Flush Cup Cam Latches Dress up the look of your enclosure with these attractive, flush-mounted style latches. Recessed round cup keeps latch actuator handle from protruding above panel surface. Low-profile latch mechanism inside of cabinet door provides versatile mounting options and multi-point latching installation. FEATURES AND BENEFITS Sturdy metal cups hold recessed handles for a more presentable front panel. Metal latching mechanisms provide built-in options for single-point or multi-point latching installations. Small style minimizes space requirement for cup on front panel to just 49.2 mm (1.94") diameter Mid-size style, with 82.6 mm (3.25") diameter cup, provides added gripping area for more convenient handhold Mounting options include choice of horizontal or vertical orientation for handle when latched Available with clockwise latching for right hand (Type "A") applications, and with counterclockwise latching for left-hand (Type "B") applications Adaptable to 1-, 2-, or 3-point latching applications
