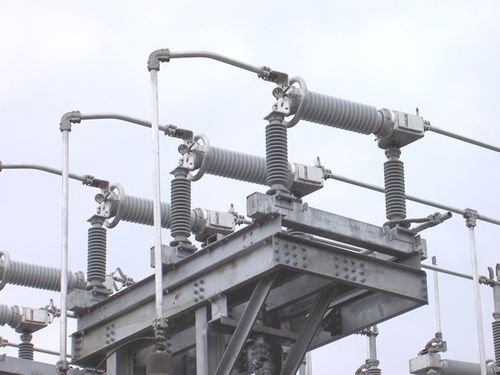

High-voltage disconnect switch 38 - 245 kV, 1.2 - 1.6 kA | LSH, LSH-B

exteriorhorizontal

Southern States LSH and LSH-B horizontal interrupter line switchers provide load breaking, loop splitting, and line dropping capabilities for your most critical line switching applications. Additional applications include transformer magnetizing current interrupting and cable switching. All circuit making and breaking operations are accomplished in SF6, eliminating open air arcs. The horizontal interrupter line switcher is available with (Model LSH-B) or without (Model LSH) an integral vertical break switch. Both models can be supplied with either a manual operator or motor operator. The LSH and the LSH-B are also well suited for such special purpose applications as series reactor or capacitor bypass switching. The design of the LSH and LSH-B is extremely versatile and can be mounted in most any orientation including horizontal upright, vertical, and underhung positions. It can also be designed to mount on a Southern States supplied support structure or for mounting on a customer supplied or existing structure.
