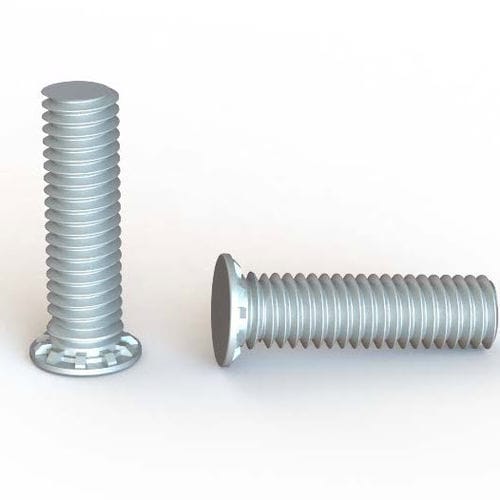

Self-clinching stud 506-534threadedsteelstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- threaded
- Material
- steel, stainless steel, zinc-coated steel
- Fixation
- crimp-on
- Other characteristics
- flush head, self-clinching
- Diameter
Max.: 8 mm
(0.31 in)Min.: 2.5 mm
(0.1 in)- Length
Max.: 34 mm
(1.34 in)Min.: 6 mm
(0.24 in)
Description
CLIFA® 506-534 PRESS-IN THREADED STUDS
Family
Press-in Threaded Studs
Type of product
Press-in Threaded Stud
Receiving material
Steel
Product material
Stainless Steel, Steel
Assembly
Pressure
Coating
In Natural State, White Zinc Plated
Trade name
CLIFA®
SELF-CLINCHING INSERTS
Self-clinching inserts have one side shaped in a way that allows them to be anchored by pressure in a previously drilled sheet. During assembly, the material of the sheet, deforming due to the pressure exerted, enters the insert’s slot, guaranteeing its fastening.
Self-clinching inserts are torsion-resistant and can bear high loads. The external dimensions are reduced, thus allowing weight and space savings, with high aesthetic results.
