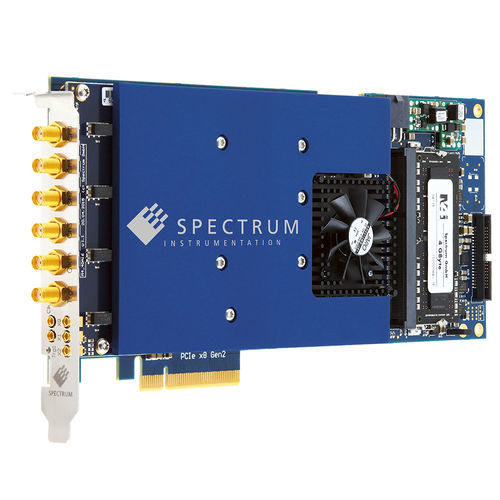

PCIe digitizer M4i.22xx series

up to 5 GS/s2-channel4-channel

DIGITIZER - PCIe - up to 5 GS/s - 8-bit - 8 bit digitizer with PCIe interface - Models with 5 GS/s, 2.5 GS/s and 1.25 GS/s - Models with 4 or 2 or 1 channel - Up to 1.5 GHz bandwidth - Input range from ± 200 mV up to ± 2.5 V - Simultaneously sampling on all channels - Separate ADC and amplifier per channel - 4 GSample on-board memory - Synchronisation of up to 8 cards = 32 channels (with Star-Hub) - 9 different models available The 9 models of the M4i.22xx PCI Express (PCIe) series high-speed digitizer are designed for the ultra fast and high quality data acquisition. Each of the input channels has its own A/D converter and its own programmable input amplifier. This allows to record signals simultaneously on 2 channels with 2.5 GS/s and on 4 channels with 1.25 GS/s without any phase delay between them. The extremely large on-board memory allows long time recording even with the highest sampling rates. All boards of the M4i.22xx series may use the whole installed on-board memory for the currently activated number of channels. A FIFO mode is also integrated on the board. This allows the acquisition of data continuously for online processing or for data storage to hard disk.10s or even 100s of 1.25 GS/s channels the 22xx series is the best choice.
