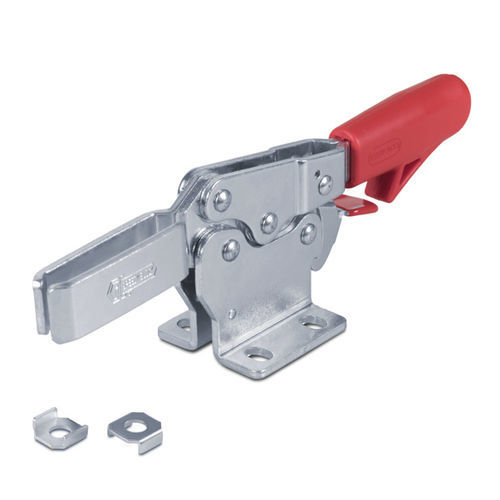

Horizontal toggle clamp ML

steelwith folded basewith anti-realease lever

Toggle clamp Form ML Toggle clamps - Horizontal series *** Also available in stainless steel material *** Horizontal series with folded base and with anti-realease lever. "Patent Pending" Material: Galvanized steel or AISI 304 stainless steel Riveted pivots: Galvanized steel or AISI 304 stainless steel Supporting bushes: Hardened and ground steel (for sizes >=355) Handles: Red polyurethane, resistant to oils, grease and other chemical agents. Performance: Form ML and form MLX with open clamping lever and two flanged washers. Spindles: To be ordered separately (see Accessories Series) Features and applications: The main feature of this series is the special anti-release lever with the purpose of avoiding any accidental openings caused by vibrations; these tools are designed to prevent the operator's fingers from being crushed by the levers when opening. During the closing, the clamping lever is guided laterally to ensure greater stability against possible transverse stresses. A special grease is placed between two contacting surfaces during assembly.
