stainless steel toggle clamp / zinc-coated steel
E SPEEDY BLOCK

{{requestButtons}}

Characteristics

  • Other characteristics:

    stainless steel, zinc-coated steel

  • Clamping force:

    Min.: 0 daN

    Max.: 0 daN

Description

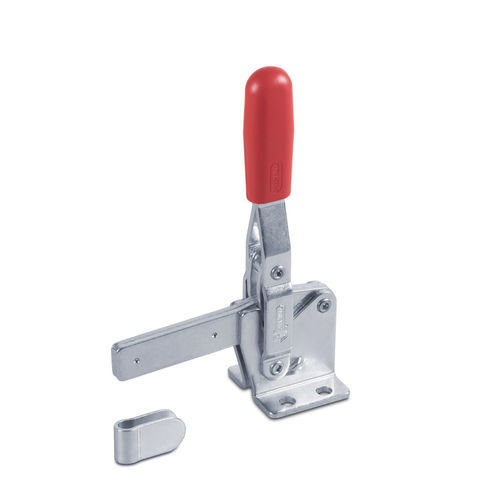

Toggle clamp Form E
Toggle clamps - Vertical series
Also available in stainless steel material

Vertical series with folded base.
Some sizes of this series are also produced in stainless steel and are shown below in red.
Material: Galvanized steel or AISI 304 stainless steel
Riveted pivots: Galvanized steel or AISI 304 stainless steel
Supporting bushes: Hardened and ground steel (for sizes ?130)
Handles: Red polyurethane resistant to oils, grease and other chemical agents.
Form E and form EX with full clamping lever and bolt retainers to be welded in the desired position and angle.
Spindles: To be ordered separately (see Accessories Series)
Features and applications: During the closing, the clamping lever is guided laterally to ensure greater stability against possible transverse stresses.
A special grease is placed between two contacting surfaces during assembly.
You can find this series in pneumatic version in "Pneumatic series"
