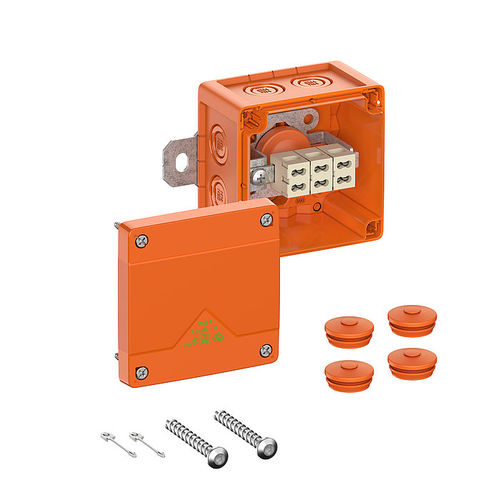

Wall-mounted junction box WKE 2 - Duo 3 x 4²

halogen-freefire-resistantIK 08

Cable junction box, with protection class IP66, Ui=450V AC, certified according to VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), UL-EU (EN 62208), Push-out membranes, M16/M25, (1 Rear, 7 Side), External fastening points, with E30 - E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder orange, Connection box, 3-pole, 0.5 - 4 mm², junction box 3-pole 0.5 - 4 mm², number of clampable wires per pin: 16 x 0.5² / 8 x 0.75² / 12 x 1² / 12 x 1.5² / 4 x 2.5² / 4 x 4² Cover retaining straps, screw anchors, 4 off double membrane seals IP66 M25 sealing area 9 - 16 mm
