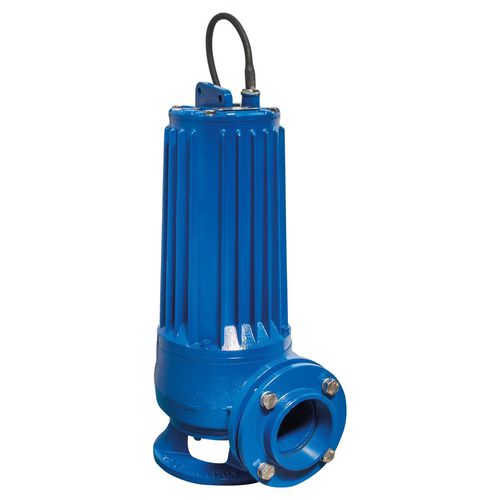

wastewater pump / electric / submersible / centrifugal
SQ 15/85 series Speroni

{{requestButtons}}

Characteristics

  • Media:

    for wastewater

  • Operation:

    electric

  • Priming:

    submersible

  • Type:

    centrifugal

  • Domain:

    industrial

  • Other characteristics:

    irrigation, trial, stainless steel, cast iron

  • Flow:

    Min.: 400 l/min (105.6688 us gal/min)

    Max.: 1,600 l/min (422.6753 us gal/min)

  • Head:

    Min.: 12 m (39'04")

    Max.: 30 m (98'05")

  • Power:

    Min.: 1.1 kW (1.5 hp)

    Max.: 7.5 kW (10.2 hp)

Description

SQ 15/85
APPLICATION
Thanks to their important features, SQ pumps are the ideal solution for the carriage of waters coming from cleaners, sewing systems, zootechnic farms, slaughter-houses, foundries and for irrigation in agricultural field. Applicable in fishing industry, paper mills and in civil and industrial plants. The pumps adopt open single-blade impeller which allows free passage of suspended parts and high performance.
OPERATING CONDITIONS
- Liquid temperature up to 35°C
(for home use according to EN 60335-2-41)
Temperature max. liquid: 50°C (for other uses)
- Maximum immersion depth 20 mt.
(with a cable of the appropriate length)
- Liquid PH from 4 to 10
- Continuous duty with completely submersed pump
- Liquid density 1,2 Kg/dm3
MOTOR
Insulation Class F
- Protection IP 68
MATERIALS
- Motor body: Cast iron
- Pump body: Cast iron
- Impeller: Cast iron
- Shaft with rotor: Stainless steel AISI 304
- Double mechanical seal
in oil chamber: Ceramic/Graphite/NBR
Silicon/Silicon/NBR
