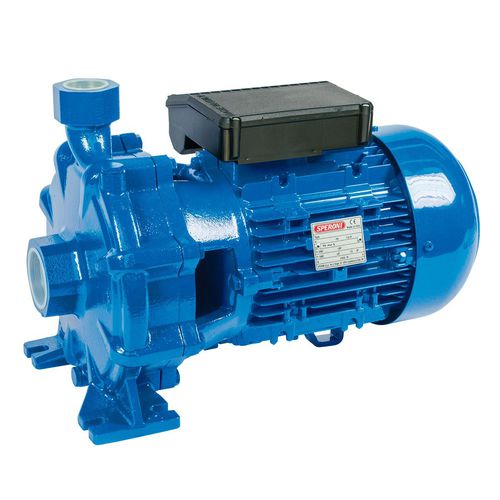

Water pump C serieselectriccentrifugalstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Technology
- centrifugal
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- irrigation, distribution, lift
- Material
- stainless steel, ceramic
- Voltage
- 400 V, 230 V
- Protection level
- IP55
- Other characteristics
- suction, mechanical, small, automatic, large, seal
- Flow
Max.: 150 l/min
(39.62581 us gal/min)Min.: 125 l/min
(33.02151 us gal/min)- Head
Max.: 54 m
(177'01" )Min.: 36 m
(118'01" )- Power
Max.: 2.2 kW
(2.99 hp)Min.: 1.1 kW
(1.5 hp)- Fluid temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)
Description
Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts.
LIMITS OF USE
- Total suction lift up to 7 mt.
- Continuous duty
ENGINE
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 55
- Minimum Efficiency Index (BEP) MEI ≥ 0,4
MATERIALS
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
