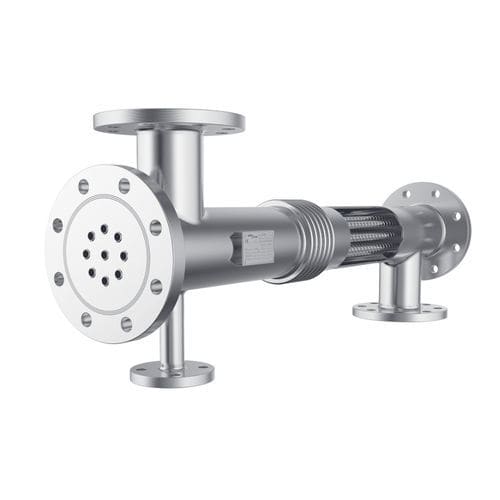

shell and tube heat exchanger / liquid/liquid / compact / sanitary
Turflow Spirax Sarco

{{requestButtons}}

Characteristics

  • Type:

    shell and tube

  • Fluid:

    liquid/liquid

  • Other characteristics:

    compact, sanitary

  • Applications:

    for the pharmaceutical industry, for the food industry

  • Operating pressure:

    12 bar (174.05 psi)

  • Temperature:

    Max.: 300 °C (572 °F)

    Min.: 10 °C (50 °F)

  • Power:

    Max.: 469,000 W (1,600,293.66 BTU/h)

    Min.: 19,000 W (64,830.66 BTU/h)

Description

The Turflow is a compact, corrugated tube heat exchanger suitable for a range of flow media - particularly well suited to fluids with lower viscosity such as juices, glycol, light solutions, CIP and suspensions containing small particles. The unique straight corrugated tube design encourages turbulent flow, resulting in high efficiency heat transfer.

The vent condenser range (EVC) is specifically designed to quench flash steam and vapour from tanks and process vents, whilst the Sanitary range (SHE), is particularly suited to bio-pharmaceutical applications where regulatory compliance is high on the agenda.

They ultimately deliver an economic, efficient solution for heat transfer in any industry inclusive of the food and beverage, and sanitary processes.
