pneumatic conveyor / tubular / horizontal



  • Technology:


  • Other characteristics:

    tubular, horizontal

  • Bulk throughput:

    120,000 kg/h (264,554.715 lb/h)

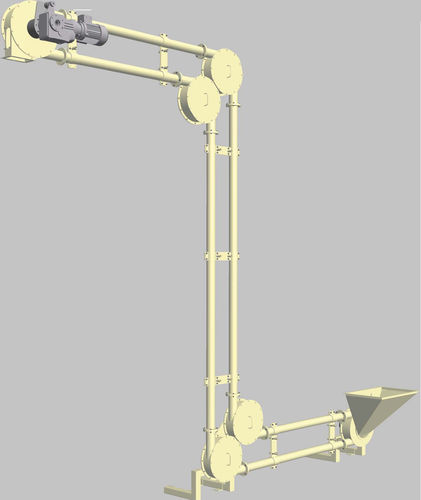

The ’Spiroflow’ Aero Mechanical Conveyor is of tubular design in which a wire rope assembly with evenly spaced polyurethane discs move at high speed. The rope assembly runs in specially designed sprockets at each end of the conveyor. The action of the rope assembly travelling at high speed creates an air stream running at the same velocity. As the material is fed into the airstream of the aero mechanical conveyor, it is fluidized and conveyed to the outlet where it is centrifugally ejected. The Aero Mechanical Conveyor is capable of conveying high volumes of material at any angle without loss of efficiency.
