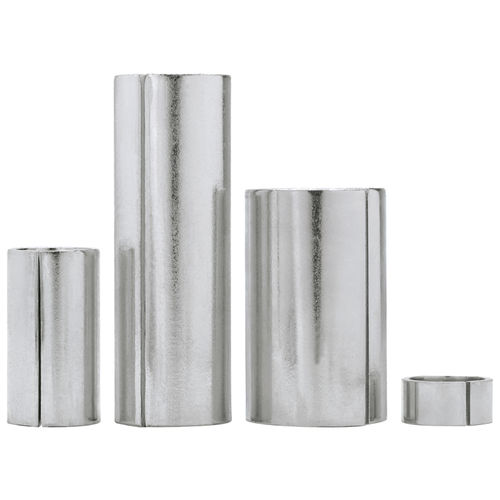

Metal spacer SP100, SP150 series

sleeve

SPIROL® Series SP100 and SP150 Spacers are used as standoffs, distance bushings, sleeves, axles, and pins. They replace more expensive spacing options of cut-off tubing, tubes, ferrules, grommets and turned parts. SPIROL Spacers are formed into closed seam tubes from cold rolled strip. A typical application for a tubular Spacer is to separate two components in an assembly joined by a bolt, rivet or rod passed through the inside diameter of the Spacer. The inside diameter of the Spacer is designed for a clearance fit over the bolt. SPIROL's standard range of roll formed tubular Spacers includes both metric and inch specifications in a variety of diameters and lengths. Most standard diameters are available in two wall thickness options, the SP100 standard wall and the SP150 heavy wall, to accommodate specific application strength and bearing requirements. SP100 Standard Wall Spacers are typically used in static applications without excessive external forces acting on the joint. SP100 Standard Wall Spacers are available in metric and inch in sizes ranging from 3mm to 20mm / #4 to .750" in low carbon steel with ArmorGalv® finish. SP100 standard wall Spacers are also available to order in austenitic stainless steel and aluminum. SP150 Heavy Wall Spacers have greater compression strength and additional bearing surface. The additional bearing surface is often used to prevent witness marks or indenting when the Spacer is clamped between soft materials. SP150 Heavy Wall Spacers are available in metric and inch sizes in sizes ranging from 3mm to 16mm / #4 to .750" in low carbon steel with ArmorGalv® finish. Additional materials and finishes are available upon request.
