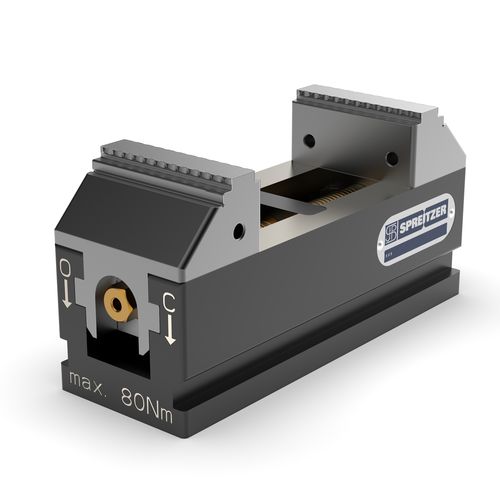

Center-clamping vise MZR
for machine tools5-axis machine toolhorizontal

center-clamping vise
center-clamping vise
center-clamping vise
center-clamping vise
center-clamping vise
center-clamping vise
Add to favorites
Compare this product


Characteristics

Applications
for machine tools, 5-axis machine tool
Configuration
horizontal, vertical, 5-axis
Other characteristics
precision, self-centering, tempered tool steel, compact, center-clamping
Max. clamping force

16,000 N, 30,000 N, 40,000 N, 50,000 N

Stroke

Min.: 19 mm
(1 in)

Max.: 114 mm
(4 in)

Description

The self-centering vise-series MZR is used as a cost-effective clamping tool for clamping raw parts on multi-axis machining centres. With its compact, maximum access to the workpiece on multi-axis machining centers is possible. The clamping width can be enlarged with reversible jaws. Advantages at a glance Attractively priced basic model Fitted base jaws Reversible jaws for large and small workpieces Material: modified steel, surfaces hardened Functional surfaces precision grinded For single-part / small series production Best results with workpieces up to 500 N/mm² material strength Raw material clamping without pre-stamping Repetition accuracy 0,01 mm Pairing accuracy 0,03 mm Explanation type: model length (mm)-width (mm) Type: MZR 80-36, MZR 120-36, MZR 120-60, MZR 150-80, MZR 170-60, MZR 190-100, MZR 220-60, MZR 220-80, MZR 220-125, MZR 280-100, MZR 320-125.
